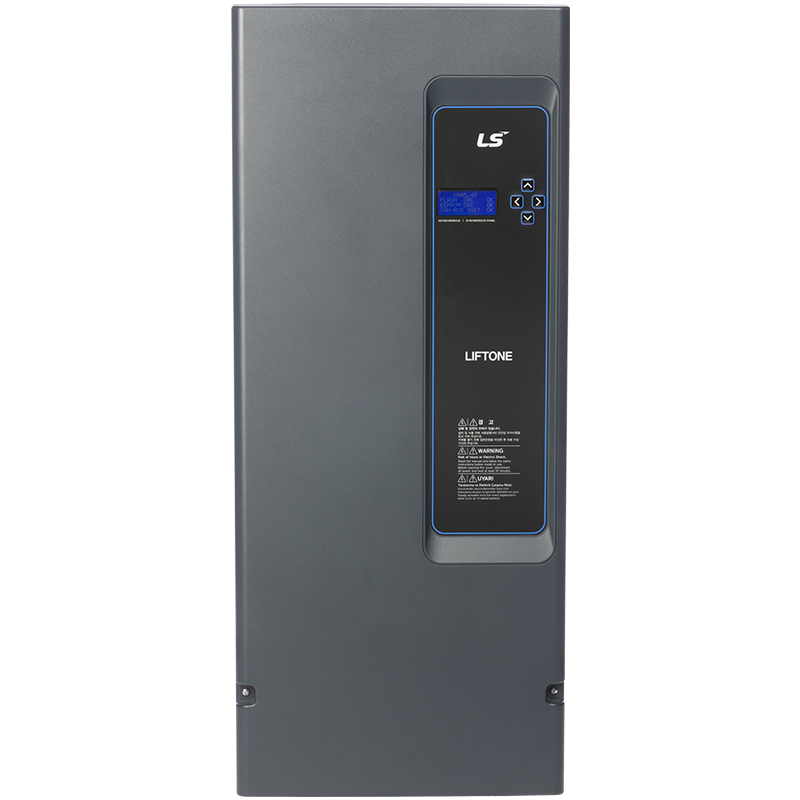

LiftOne Machine Room Type Asynchronous Lift Control Panel
| PRODUCT SPECIFICATION TABLE | ||||
| Voltage | AC 3 Phase 380V, 50/60 Hz | |||
| Drive Capacity | 5.5 kW ~ 15kW | |||
| *(Product customization available for 18.5kW ~ 22kW) | ||||
| Maximum Speed | 4 m/s | |||
| *(Product customization available for over 4m/s) | ||||
| Motor Type | IM | |||
| Asynchronous | ||||
| Encoder Compatibility | Incremental | |||
| Maximum Number of Stops | 32 | |||
| LOP Options | N | P | ||
| Serial Communication | Parallel Connection | |||
| Compatible LOP/COP Displays | 7 Segments | |||
| Gray/Binary (Dot matrix, TFT, LCD, etc.) | ||||
| Rescue Operation | UPS or UPS+ Battery | |||
| Communication Protocol | LS Serial Communication Protocol | |||
| Dimensions | Width | Height | Depth | |
| MR | 360mm | 860mm | 260mm | |
| Certifications | EN 81-20/50 | |||
| SIL3-STO | ||||
| CE | ||||
| Compliant Standards | EN 81-20/50 | |||
| EN 81-1/-2+A3 | ||||
| EN 81-70 | ||||
| EN 81-73 | ||||
| EN 81-77 | ||||
